TYPICAL PROJECT
Supply & Fabrication of J1 HRSG Casing and Duct for Jyoetsu Power Plant



PROJECT DESCRIPTION

  • Fabrication, blasting and painting, insulation, packing and transportation of J1 HRSG casing and duct for Jyoetsu Power Plant in Japan.

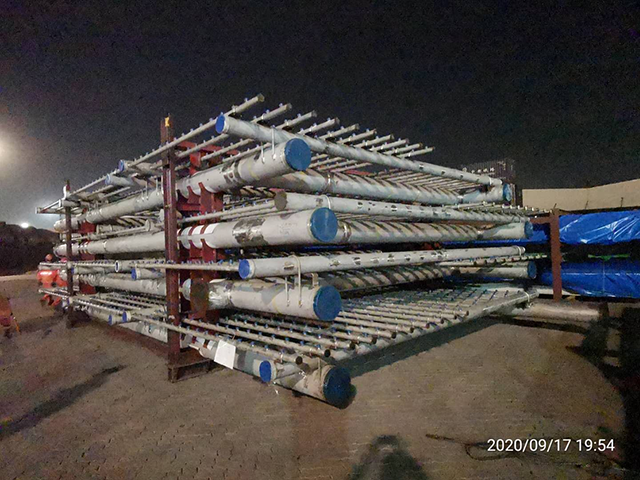

  • Total weight is near 1200tons, which includes casing panels, inlet, outlet duct panels, exhaust duct panels, NH3 injection grid, seismic tie, inner brace, gauge connection, baffle plate, bumper, insulation and other appendixes with total 24 different items.
  • Size of casing panel is up to 25m length, 6.5m width, 2m height, and weight is up to 46tons.

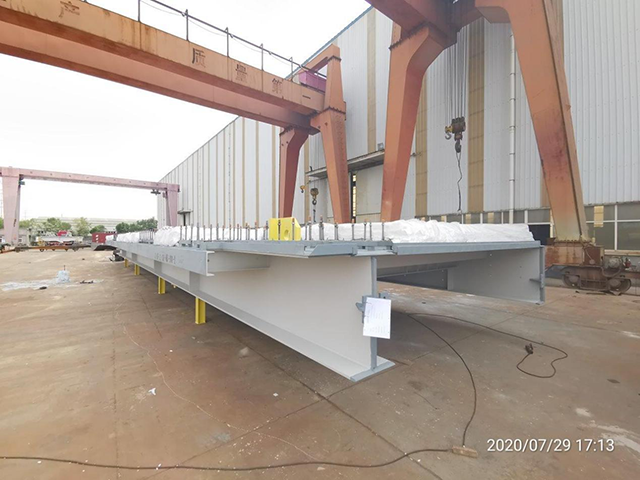

  • All the casing and duct panels are be insulated at shop.


SCOPE OF WORK

  • Preparing shop fabrication drawing

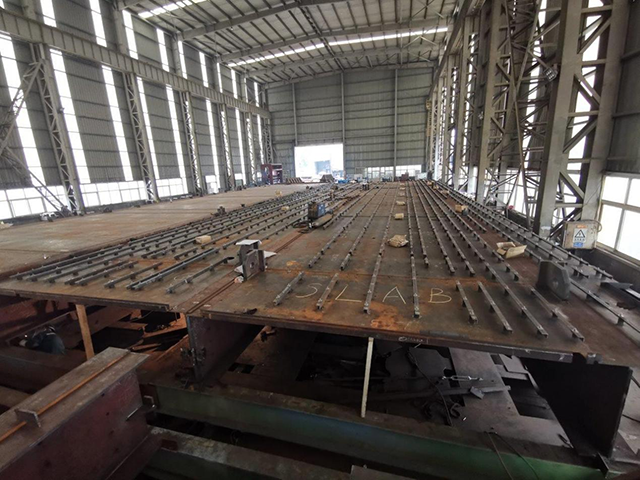

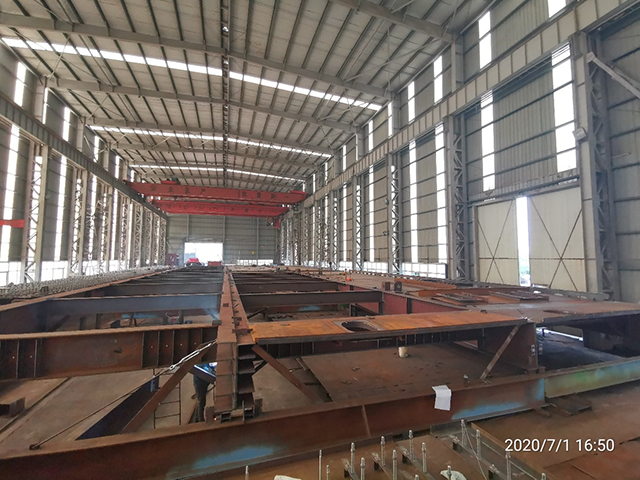

  • Marking and welding
  • Surface preparation and shop painting
  • Insulation
  • Inspection

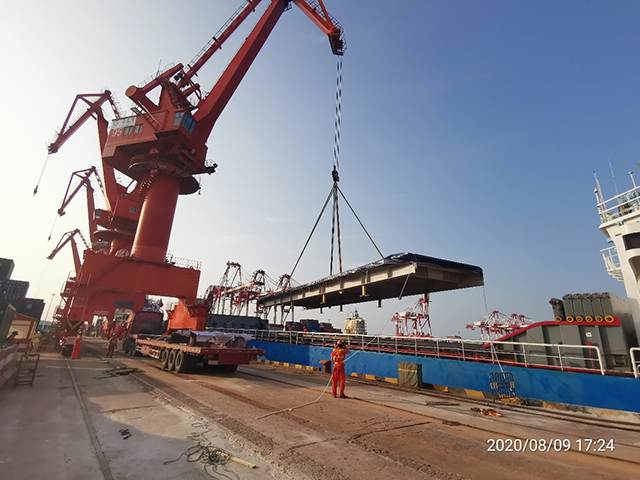

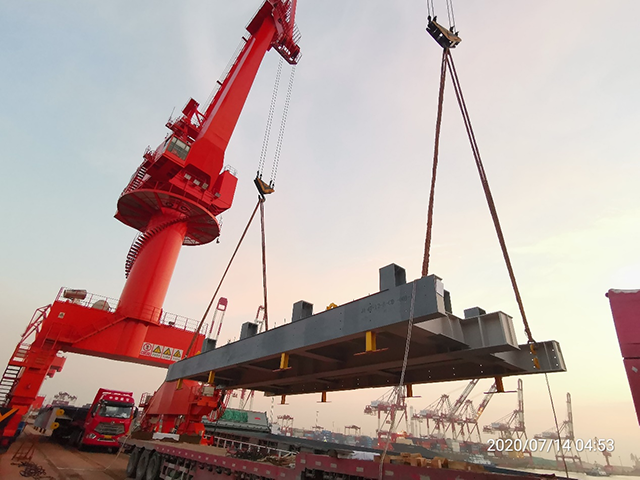

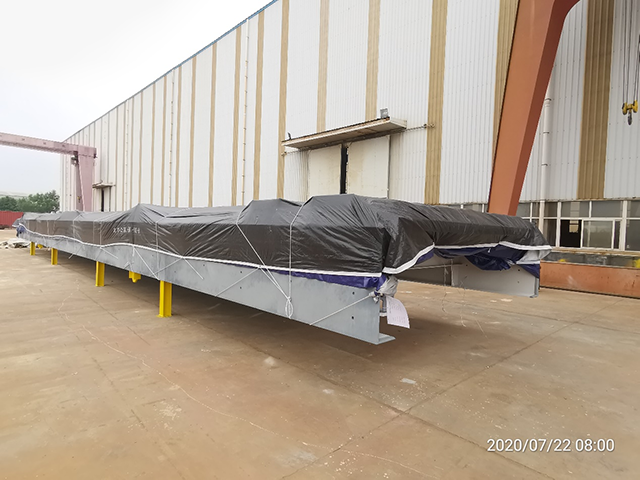

  • Export packing, domestic transportation


CLIENT:Mitsubishi Heavy Industries. Ltd.    LOCATION: Japan


DURATION: Mar 2020 - Sep 2020
